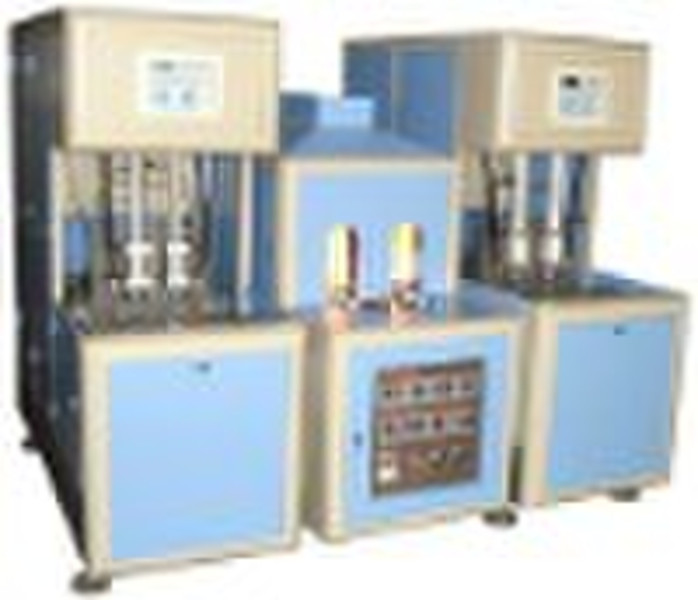

2000 Semi-automatic Blow Molding Machine (HY-BII)

Blow Molding Machine 1.semi-automatic, CHEAP PRICE 2.2 Workstations, FAST OUTPUT 3.famous brand-name parts 4.operator safety Explanation: Semi-automatic: This machine adopts simple and reliable design, your worker can operate this machiine even without training. This machine is very cheap also, very suitable for beginners in drink plant. Fast Output: HY-BII has 2 workstations and1 heating station, with which 2 worker can produce 1800 BPH 500ml PET bottles!! Famous brand-name parts: Famous brand-name parts have been adopted, FESTO valves,cylinders, OMRON relays, HITACHI operating system, etc. These main parts ensures the stability of this excellent machine. Operator safety: Interlock Clamp-botton design prevent operators hand being clamped by molds. Photos: Interlock Safety Design protects operator from injury. Our BMM workshop Specification ModelHY-BIIDataContainerProduct materialPETProduct volume range50 2000 mlProduct neck diameter range18 40 mmProduct body diameter (Max)125 mmProduct body height (Max)420 mmTheoretical Output (on 500ml basis)1500 1800 pcs/hrMoldMold cavity quantity2*2Max mold plate size (L*W)360*390 mmMax mold thickness200 mmMold opening stroke160 mmMold clamping force56 KNMain MachineAir pressure for movement use0.8 1.0 MpaAir pressure for blowing use2.0 3.0 MpaPower type (Adjustable)220v, 50HzRated power1 KW*2Dimension (L*W*H)1600*600*1610 mm*2Weight500 kg*2HeaterHeating typeInfrared lightPower type (Adjustable)380v, 50HzRated power14 KWDimension (L*W*H)1870*630*1450 mmWeight260 kgAir CompressorExhausting capacity1.0 m3/minRated pressure3.0 MpaAir storage tank0.32 m3Power type (Adjustable)220v, 50HzRated power11 KWDimension (L*W*H)1850*850*1450 mmWeight600 kg The TNN Development Ltd. Mr. Simon Lv. Tel:0086-411-82597001/7002/7003 Fax: 0086-411-82561417 Mobile: 0086-15941196850
