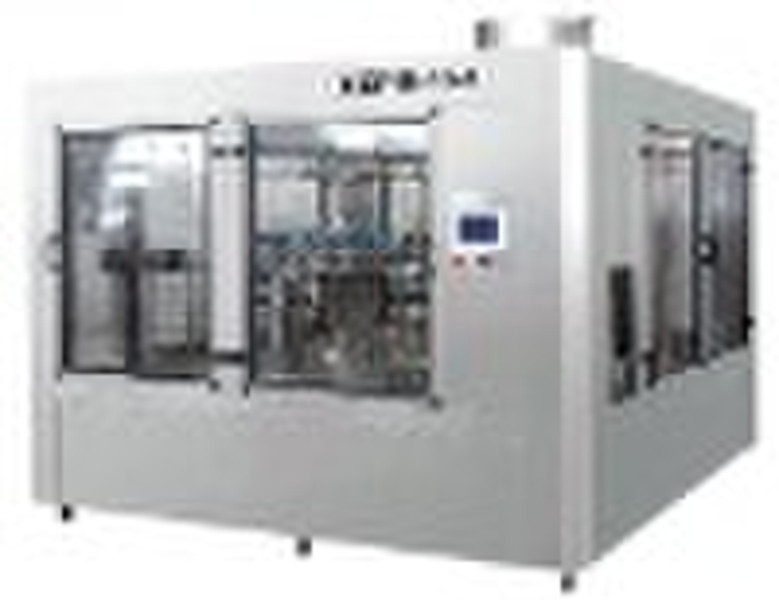

12000 Normal Pressure Filling Machine XGF Series

Filling Machine 1.Easy to change bottle shape 2.PLC Process Control 3.Famous brand-name units for key parts 4.Reliable work The XGF series Normal Pressure 3-in-1 Filling Machine is suitable for filling polyester or PET bottles with non-carbonated drinks (pure water, mineral water, etc.). It realizes an automatic combination of three processes including bottle-washing, filling and cap-screwing. Unique Technologies Adopted: Neck-Blocking Technology makes switches between different size bottles much easier and faster, thereby minimizes your opportunity cost and maximizes your profit. Specification ModelXGF16-12-6XGF18-18-6XGF24-24-8 XGF32-32-12 XGF40-40-15 Production Capacity (500ml)4000 50006000 80008000 10000 10000 12000 13000 14000 Filling Precision≤±5mm (By Level) Compressed Air (MPa)0.3 0.7 Washing MediumSterilized Water Washing Pressure0.25 Bottle SizeBody Diameter: 50-90 Bottle Height: 150-310 Suitable CapPlastic Screw Cap Power(KW)3.133.844.1 5.6 7.5 Weight(Kg)250030004000 5000 9000 Overall Dimension (mm)2100*1650*23002400*1900*23002800*2100*2300 4200*2300*2300 5000*2800*2400
